False-floor drawer insert

Hide valuables under a false drawer floor

Drops into a drawer and hides a shallow compartment: slide a sheet of 3 mm hardboard, cut to size, along the grooves in the side walls and over the lowered front wall, put the socks back on top, and passports or cash lie unseen underneath.

Customize this model

Size: 200 × 140 × 40 mm
Shape: Rectangular
Walls: 2.4 mm
Volume: 74.6 cm³
Est. weight (PLA): 92.5 g
Parts to print: 1
Category: Drawer & cabinet organisers
Made by: Krypto
Built in: 24 steps

What’s in it

Rectangular, 200 × 140 × 40 mm, with 2.4 mm walls

How to print it

Add a sheet of 3 mm hardboard cut to size.

Prints as shown on its floor, no supports.

Filament: at most about 92.5 g of PLA printed solid (roughly $1.85 at $20 per kg); normal infill uses less.

To get the files, open it in the generator and choose File › Download STL (one file per part) or Download 3MF (every part on one plate).

Questions

What size is the false-floor drawer insert model?

The false-floor drawer insert model measures 200 × 140 × 40 mm (width × depth × height). You can change every size in the free SO3D.xyz generator before you download it.

Does it need supports?

No. Add a sheet of 3 mm hardboard cut to size. Prints as shown on its floor, no supports.

How much filament does it use?

At most about 92.5 g of PLA (74.6 cm³ printed solid), roughly $1.85 of filament at $20 per kg. Normal infill uses less.

Can I change it?

Yes. Open it in the SO3D.xyz generator (free, in your browser), change the size, walls, dividers, holes, text or anything else, then download it as STL or 3MF for your slicer.

More drawer & cabinet organisers

Hardboard drawer divider clips

Fit custom dividers in any drawer

Simple

Hanging-file rail clips

Hang suspension files in an ordinary drawer

Simple (set)

Tip-out sink front tray

Use the dummy panel in front of a sink

Simple

Gridlap Comb

Anchor divider strips to a drawer wall

Simple

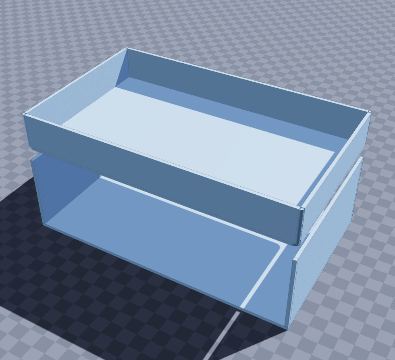

Drawer bridge shelf

Add a second level inside a deep drawer

Medium

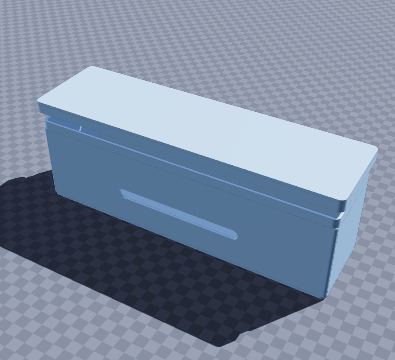

Bin liner roll dispenser

Dispense bin liners one at a time

Multi-part assembly

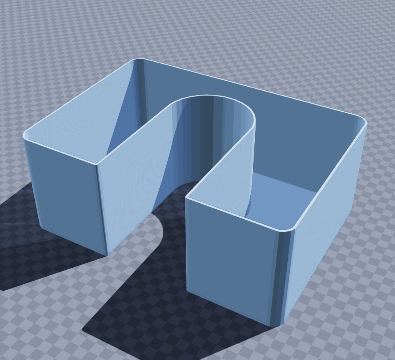

Under-sink trap-straddling caddy

Use the space around a sink waste pipe

Simple

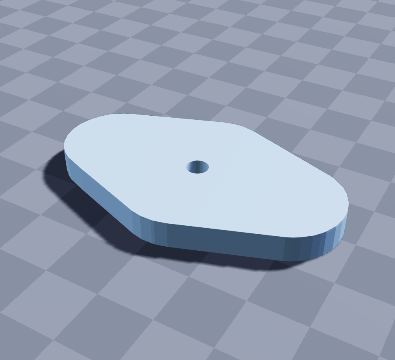

Drawer pull-out stop button
