Mount tubes for rails and shelving
A floor or wall flange for 20 mm conduit or dowel: screw it down through the four holes and push the tube into the socket to make clothes rails, light shelving or plant supports.
Print in PETG with 5 walls; not for load-bearing handrails.
Prints flat as a plate, no supports. Stacked parts are fused into one print.
Filament: at most about 50.8 g of PLA printed solid (roughly $1.02 at $20 per kg); normal infill uses less.
To get the files, open it in the generator and choose File › Download STL (one file per part) or Download 3MF (every part on one plate).

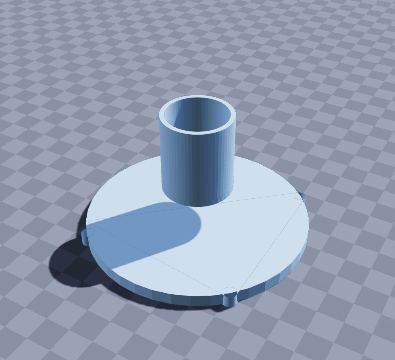

The pipe floor flange model measures Ø 90 mm, 10 mm tall. That is Base A; one more base is built on. You can change every size in the free SO3D.xyz generator before you download it.
No. Print in PETG with 5 walls; not for load-bearing handrails. Prints flat as a plate, no supports. Stacked parts are fused into one print.
At most about 50.8 g of PLA (41.0 cm³ printed solid), roughly $1.02 of filament at $20 per kg. Normal infill uses less.
Yes. Open it in the SO3D.xyz generator (free, in your browser), change the size, walls, dividers, holes, text or anything else, then download it as STL or 3MF for your slicer.
Change the size, walls, dividers, holes and labels of the pipe floor flange model in your browser, then download it for your printer. Free, no CAD needed.
