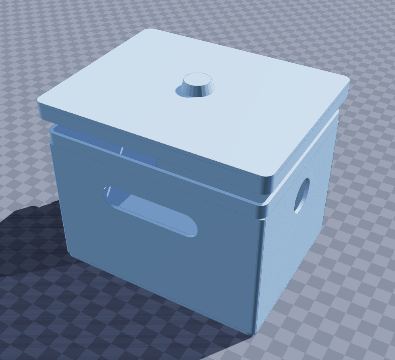

Fluorescent mineral viewing box

View fluorescent minerals in daylight

A dark box with a binocular slit at the front and a 22 mm port on the side for a UV torch: lay a specimen inside, close the lid and see its fluorescence glow in daylight, without blacking out the room. Safer too, as the UV stays inside the box.

Customize this model

Size: 140 × 110 × 90 mm
Shape: Rectangular
Walls: 2.4 mm
Volume: 103 cm³
Est. weight (PLA): 128 g
Parts to print: 2
Category: Collections & display
Made by: Krypto
Built in: 21 steps

What’s in it

Rectangular, 140 × 110 × 90 mm, with 2.4 mm walls
2 holes in the walls
Telescoping lid (prints separately)

How to print it

Print in black.

Prints as shown on its floor, no supports. Large holes in the walls may need supports or good bridging. The lid prints as a separate part, top down.

Filament: at most about 128 g of PLA printed solid (roughly $2.56 at $20 per kg); normal infill uses less.

To get the files, open it in the generator and choose File › Download STL (one file per part) or Download 3MF (every part on one plate).

Questions

What size is the fluorescent mineral viewing box model?

The fluorescent mineral viewing box model measures 140 × 110 × 90 mm (width × depth × height). You can change every size in the free SO3D.xyz generator before you download it.

Does it need supports?

It may need supports in places. Print in black. Prints as shown on its floor, no supports. Large holes in the walls may need supports or good bridging. The lid prints as a separate part, top down.

How much filament does it use?

At most about 128 g of PLA (103 cm³ printed solid), roughly $2.56 of filament at $20 per kg. Normal infill uses less.

How many parts does it print as?

2 parts. The download lays each part flat in its best print position: Download STL gives one file per part, Download 3MF puts them all on one plate.

Can I change it?

Yes. Open it in the SO3D.xyz generator (free, in your browser), change the size, walls, dividers, holes, text or anything else, then download it as STL or 3MF for your slicer.

More collections & display

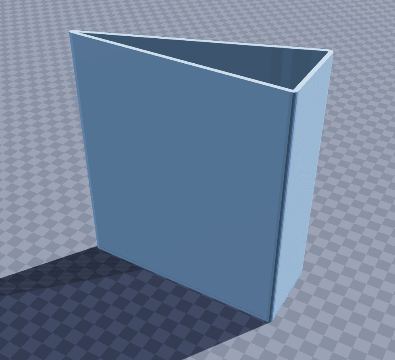

Open-book conservation cradle wedges

Support old books open without straining the spine

Simple (set)

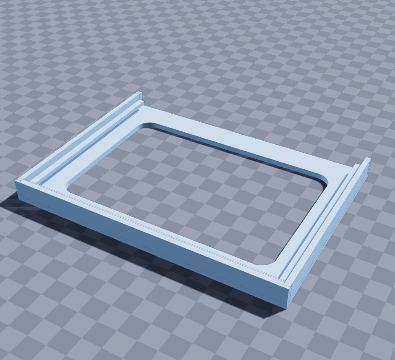

Slide-in double-glass specimen frame

Display flat specimens visible from both sides

Simple

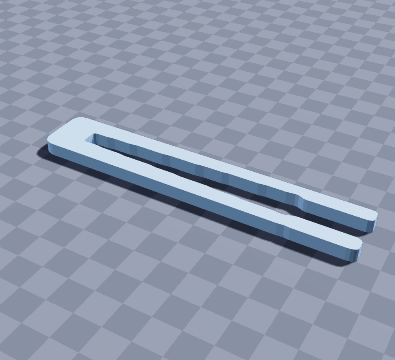

One-piece stamp tongs

Handle postage stamps without touching them

Simple

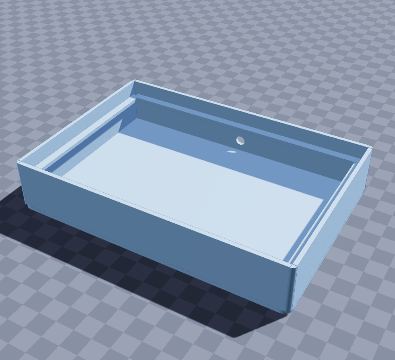

Backlit sea-glass light tray

Display translucent finds lit from below

Simple

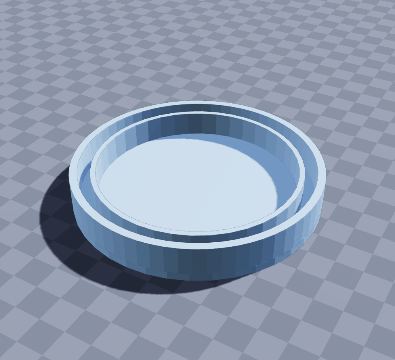

Upturned-glass display cloche base

Turn a drinking glass into a display dome

Simple

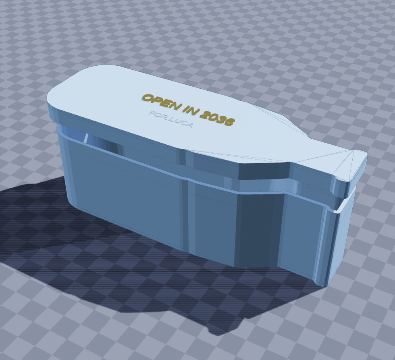

Castaway

Give a rolled letter in a bottle-shaped box

Multi-part assembly

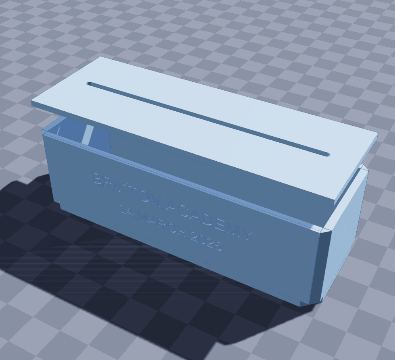

Encore Plinth

Stand a concert ticket upright with the venue

Medium

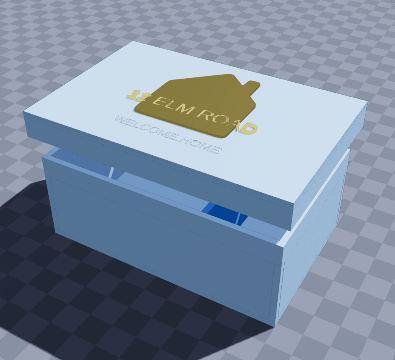

Keyday
