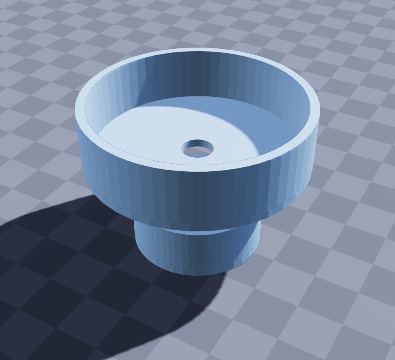

Eye drop aiming guide — 3D-printable model preview

AR view

Health & medicine Medium

Eye drop aiming guide

Put in eye drops accurately

Push the dropper bottle nozzle-first into the collar and rest the soft-edged eyecup round the eye: the nozzle sits centred above the eye at a fixed distance, so each drop lands where it should and the tip never touches the eye.

Customize this model

Size (Base A): Ø 30 mm, 12 mm tall
Shape: Round
Walls: 2.0 mm
Volume: 9.3 cm³
Est. weight (PLA): 11.6 g
Parts to print: 1
Category: Health & medicine
Made by: Krypto
Built in: 17 steps

What’s in it

Round, Ø 30 mm, 12 mm tall, with 2.0 mm walls
2 holes in the floor
One more base built on (Base B)
Base B: oval, 40 × 32 mm, 12 mm tall (stacked)

How to print it

Fits bottles up to 24 mm across.

Prints as shown on its floor, no supports. Stacked parts are fused into one print.

Filament: at most about 11.6 g of PLA printed solid (roughly $0.23 at $20 per kg); normal infill uses less.

To get the files, open it in the generator and choose File › Download STL (one file per part) or Download 3MF (every part on one plate).

Questions

What size is the eye drop aiming guide model?

The eye drop aiming guide model measures Ø 30 mm, 12 mm tall. That is Base A; one more base is built on. You can change every size in the free SO3D.xyz generator before you download it.

Does it need supports?

No. Fits bottles up to 24 mm across. Prints as shown on its floor, no supports. Stacked parts are fused into one print.

How much filament does it use?

At most about 11.6 g of PLA (9.3 cm³ printed solid), roughly $0.23 of filament at $20 per kg. Normal infill uses less.

Can I change it?

Yes. Open it in the SO3D.xyz generator (free, in your browser), change the size, walls, dividers, holes, text or anything else, then download it as STL or 3MF for your slicer.

More health & medicine

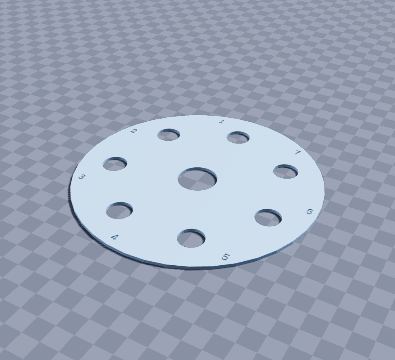

Insulin injection site rotation template

Rotate injection sites evenly round the navel

Advanced

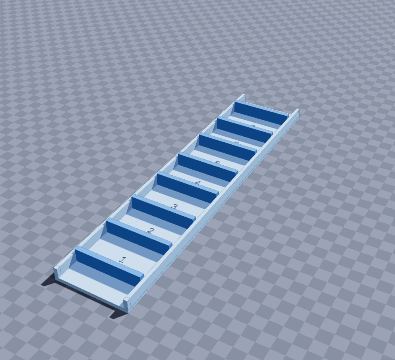

Wall finger ladder for shoulder exercises

Track shoulder stretching range on the wall

Advanced

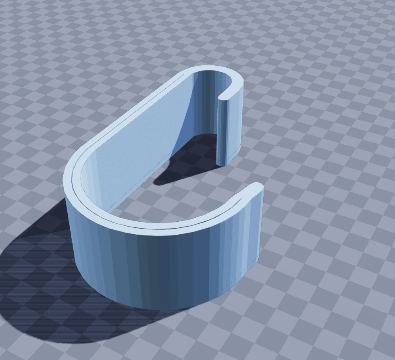

CPAP hose drip-dry hanger

Dry a washed CPAP hose without kinks

Simple

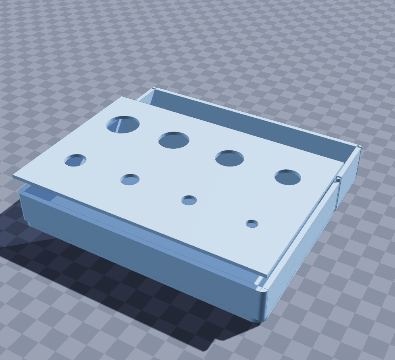

Graded hand therapy peg board

Practise pinch grip with graded pegs

Advanced

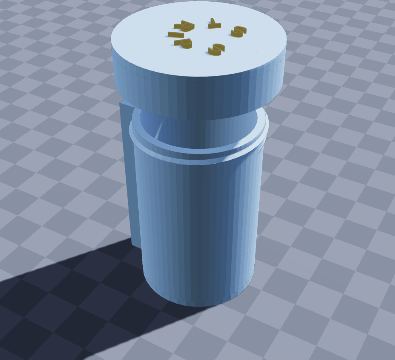

Used test strip pocket bin

Collect used glucose test strips on the go

Multi-part assembly

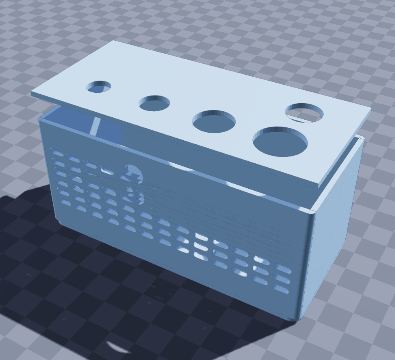

Oral syringe drying rack

Dry oral medicine syringes hygienically

Advanced

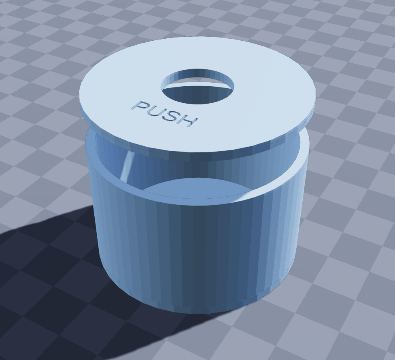

Blister pack tablet popper with catch cup

Pop tablets from blister packs without losing them

Medium

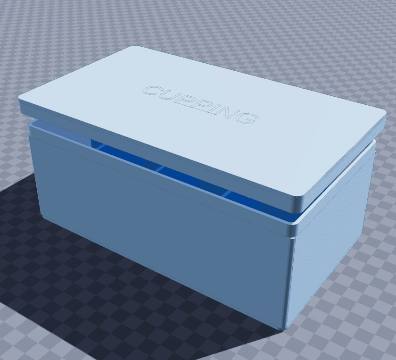

Cupping therapy set case
