Feed boards safely past a cutter
Keeps your hands well above the cutter when you feed a board over a jointer or across a router table: hold the tall handle and press the grippy base down onto the wood.
Print the base in TPU, or stick rubber grip tape underneath.
Prints as shown on its floor, no supports. Stacked parts are fused into one print.
Filament: at most about 87.7 g of PLA printed solid (roughly $1.75 at $20 per kg); normal infill uses less.
To get the files, open it in the generator and choose File › Download STL (one file per part) or Download 3MF (every part on one plate).

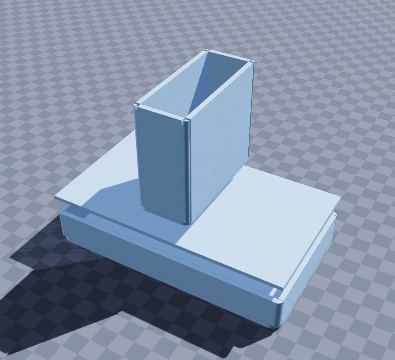

The jointer and router push block model measures 140 × 80 × 22 mm (width × depth × height). That is Base A; 2 more bases are built on. You can change every size in the free SO3D.xyz generator before you download it.
No. Print the base in TPU, or stick rubber grip tape underneath. Prints as shown on its floor, no supports. Stacked parts are fused into one print.
At most about 87.7 g of PLA (70.8 cm³ printed solid), roughly $1.75 of filament at $20 per kg. Normal infill uses less.
Yes. Open it in the SO3D.xyz generator (free, in your browser), change the size, walls, dividers, holes, text or anything else, then download it as STL or 3MF for your slicer.
Change the size, walls, dividers, holes and labels of the jointer and router push block model in your browser, then download it for your printer. Free, no CAD needed.
