Ab roller wheel for a broom handle

Make an ab roller from a wheel and a dowel

A 150 mm wheel stiffened by six spokes and a closed face: push a 22 mm dowel or an old broom handle through the hub to make the axle and both grips. Stretch a section of bike inner tube round the tread for grip and quiet rolling.

Customize this model

Size (Base A): Ø 150 mm, 60 mm tall
Shape: Round
Walls: 3.0 mm
Volume: 240 cm³
Est. weight (PLA): 297 g
Parts to print: 1
Category: Sport & fitness
Made by: Krypto
Built in: 20 steps

What’s in it

Round, Ø 150 mm, 60 mm tall, with 3.0 mm walls
Radial dividers making 6 wedge-shaped sections
2 holes in the floor
One more base built on (Base B)
Base B: round, Ø 150 mm (stacked)

How to print it

PETG with 4 walls.

Prints as shown on its floor, no supports. Stacked parts are fused into one print.

Filament: at most about 297 g of PLA printed solid (roughly $5.95 at $20 per kg); normal infill uses less.

To get the files, open it in the generator and choose File › Download STL (one file per part) or Download 3MF (every part on one plate).

Questions

What size is the ab roller wheel for a broom handle model?

The ab roller wheel for a broom handle model measures Ø 150 mm, 60 mm tall. That is Base A; one more base is built on. You can change every size in the free SO3D.xyz generator before you download it.

Does it need supports?

No. PETG with 4 walls. Prints as shown on its floor, no supports. Stacked parts are fused into one print.

How much filament does it use?

At most about 297 g of PLA (240 cm³ printed solid), roughly $5.95 of filament at $20 per kg. Normal infill uses less.

Can I change it?

Yes. Open it in the SO3D.xyz generator (free, in your browser), change the size, walls, dividers, holes, text or anything else, then download it as STL or 3MF for your slicer.

More sport & fitness

Forearm wrist roller tube

Train forearms and grip with a rolled weight

Medium

Skateboard bearing press with depth flange

Press skate bearings into wheels squarely

Medium

Skipping rope handles

Make a skipping rope

Simple (set)

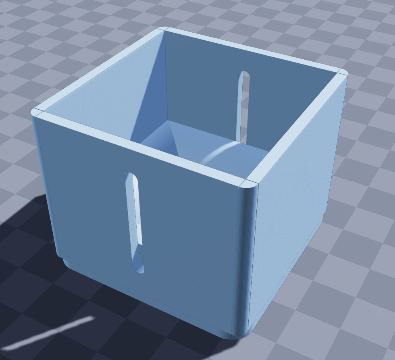

Golf ball alignment line stencil

Draw straight alignment lines on golf balls

Simple

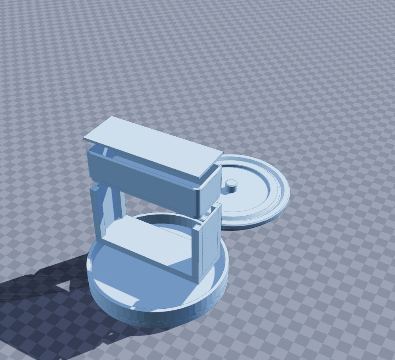

Rotating push-up handle

Let wrists rotate naturally during push-ups

Multi-part assembly

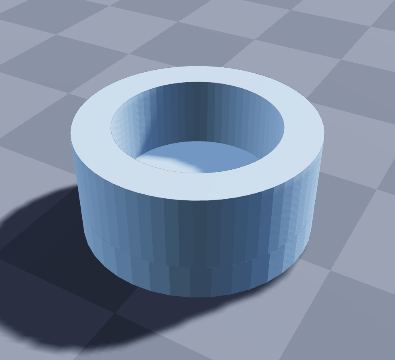

Race bib magnet buttons

Attach a race number without pinning the shirt

Simple (set)

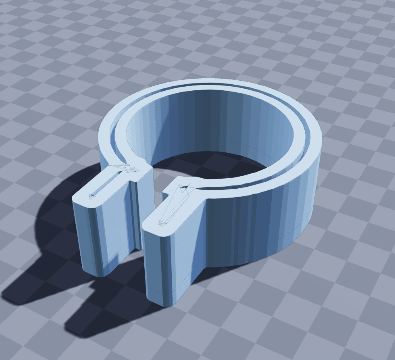

Barbell spring collar clip

Stop weight plates sliding off a barbell

Simple (set)

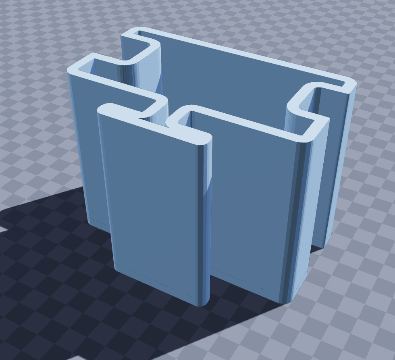

Finger edge lifting block
